TECHNICAL SPECIFICATIONS
DMO KOD: 355.1062005
SURGERY ROOM
PATIENT TRANSFER

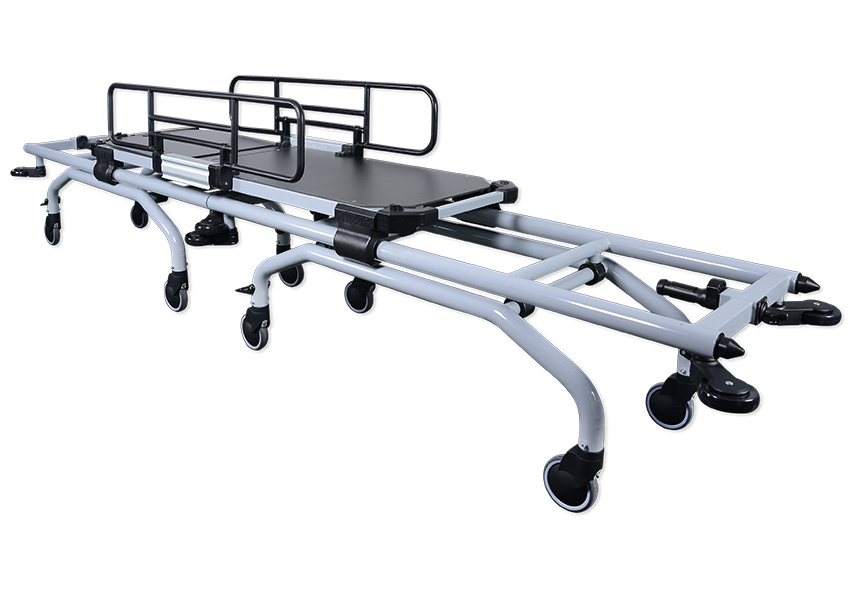

STRETCHER
ATRAX 018
Movement

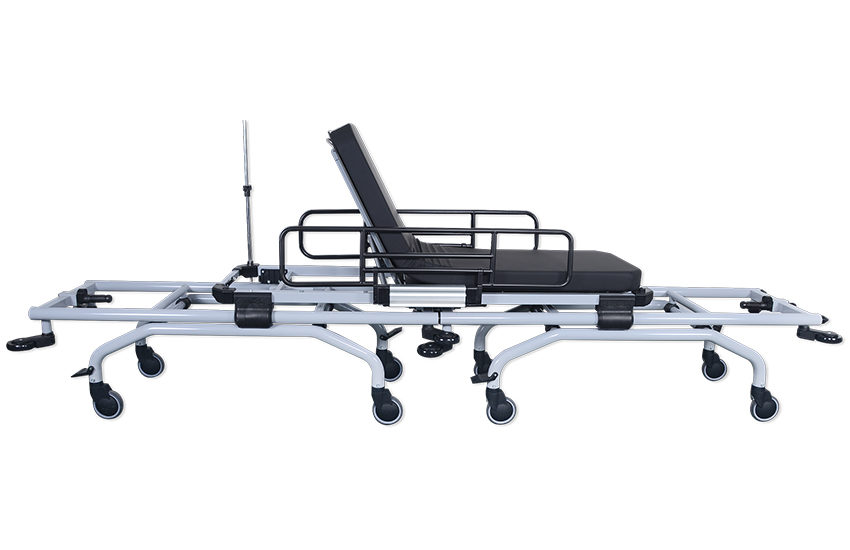

Offers back movement with gas piston.
Railing Structure and Type
Polyurethane-coated with internal steel support
Metal Structure, Type, Thickness (Wall Structure)
Carbon steel, surface-treated with electrostatic powder paint
Diameter: 60×1.5 mm tube, 50x50x2 mm profile
50x30x2 mm profile, 30x30x1.5 mm profile
Paint Electrostatic paint
Lying Surface Specifications
8 mm-thick compact laminate (HPL)
Wheel Diameter 150 mm
Wheel-Locking Mechanism
The cross braking system is with directionally braked in the top position, free in the middle position, and braked in the bottom position.
Serum Hanger Specifications
Functions telescopically with its tube having
21×1.5 mm diameter for outer section and 16×1.5 mm for middle section made of stainless steel and with two hooks.
Number of Protective Bumpers
4 bumpers available at each lower stretcher.
125 mm in diameter.
Stretcher Width & Length (Bumper to Bumper)
780×2165 mm
Stretcher Height (excluding Bedding)
685 mm
Bedding Size and Specifications
620 x1900x100 mm
32 density mattress with
urine & defecation-proof sheath.
